Inline-Hochgeschwindigkeits-Dosiermaschine der LM-Serie

Professional inline dispensing solution with linear motor drive, CCD vision positioning, and high-speed precision control for demanding manufacturing applications.

1000mm/s ±0.01mm CE Certified

Product Overview

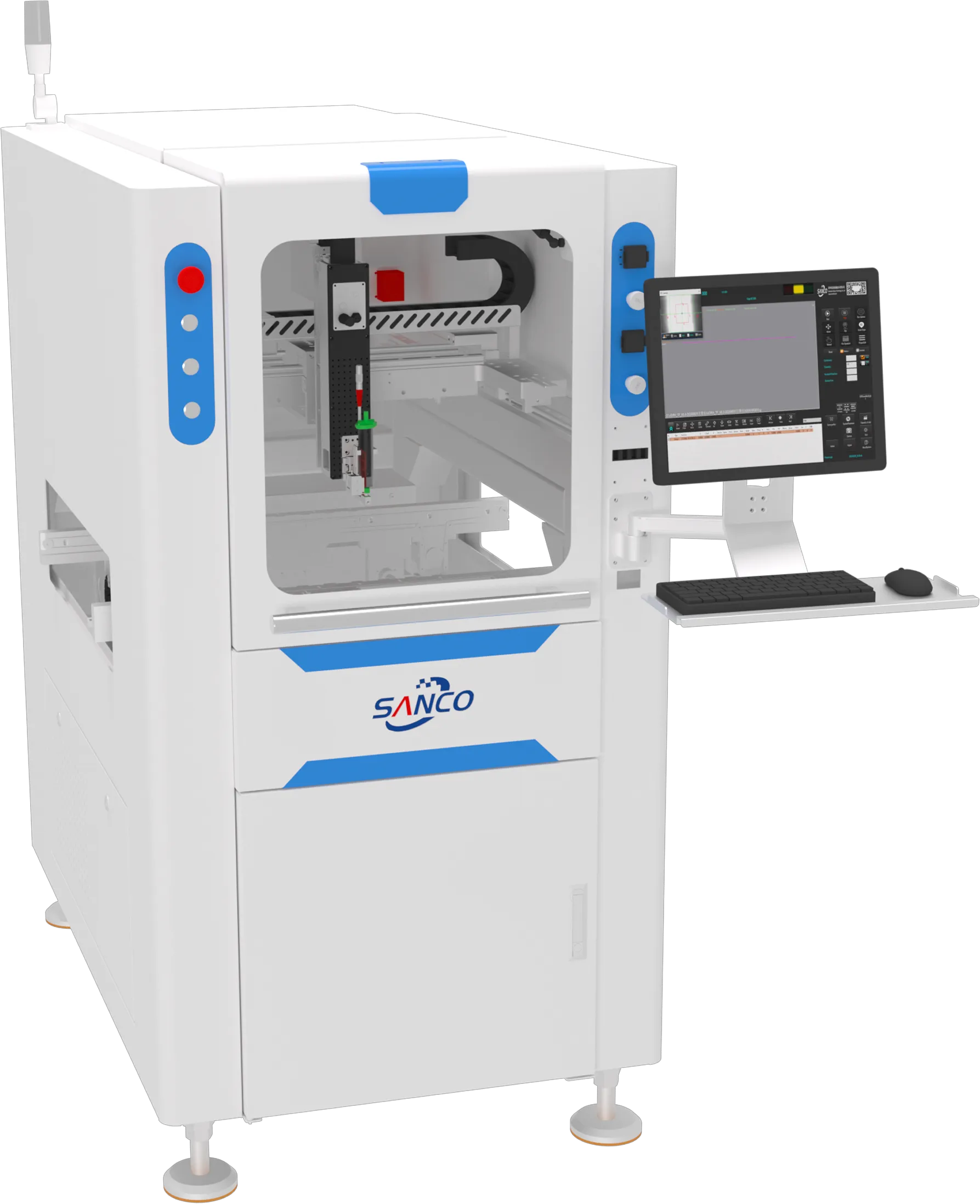

Inline-Hochgeschwindigkeits-Dosiermaschine der LM-Serie

The LM Series is engineered for demanding inline production environments where precision and throughput cannot be compromised. Powered by a linear motor drive system on the X/Y axes and servo motor on the Z axis, it achieves a maximum dispensing speed of 1000mm/s — setting a new benchmark for high-speed automated dispensing.

Built on a cast iron chassis and gantry weighing 1000 kg, the LM Series delivers exceptional structural rigidity that eliminates vibration-induced errors. Integrated CCD vision positioning and compatibility with SMT file import or online visual programming ensure seamless integration into modern SMT production lines with minimal setup time.

Available in three work-area configurations — LM400, LM1000, and LM1500 — the series accommodates a wide range of PCB sizes and production volumes, making it the ideal solution for electronics manufacturers, semiconductor packaging, and precision adhesive applications.

Maximale Geschwindigkeit

1000 mm/s

Reproduzierbarkeit Genauigkeit

±0.01 mm

Chassis Weight

1000 kg

Safety Standard

CE Certified

KEY FEATURES

High Performance

Maximum speed 1000mm/s
Repeatability accuracy ±0.01mm
Linear motor X Y, Servo motor Z
Optional weighting module with accuracy +/-0.1mg

Intelligente Steuerung

IPC + Motion control card
Sanco software + Windows 10 OS
CCD Vision Positioning System
SMT-Datei oder Online-Vision-Programmierung

Quality & Safety

CE certified safety standard
Cast iron chassis & gantry weighting 1000kg
Sound and light alarm system
Vacuum valve cleaning device

Anwendungen

Precision dispensing for diverse manufacturing needs across electronics and semiconductor industries.

Thermischer Kleber

SMT-Unterfüllung

Bauteil-Verpackung

Lötpaste

Roter Kleber

Schwarzer Kleber

Halbleiter-Packaging

Wafer-Befestigung

Technische Daten

Detaillierte Parameter

Vollständige technische Daten für alle Modellvarianten.

Swipe left/right to view all models

Spezifikation	LM400	LM1000	LM1500
Dimension	L=850mm W=1400mm H=1600mm	L=1750mm W=1400mm H=1600mm	L=2250mm W=1400mm H=1600mm
Net Weight	1000kg	1200kg	1400kg
Kontrolle	IPC + Motion control card	IPC + Motion control card	IPC + Motion control card
Software	Sanco software + Windows	Sanco software + Windows	Sanco software + Windows
Programm	SMT-Datei oder Online-Vision-Programmierung	SMT-Datei oder Online-Vision-Programmierung	SMT-Datei oder Online-Vision-Programmierung
Number of Spindles	X Y Z	X Y Z	X Y Z
Spindle Drive	Linear motor X Y, Servo motor Z	Linear motor X Y, Servo motor Z	Linear motor X Y, Servo motor Z
Entfernung Bereich	X:400 Y:400 Z:50mm	X:1000 Y:400 Z:50mm	X:1500 Y:400 Z:50mm
Valve Quantity	1 pcs (Standard)	1 pcs (Standard)	1 pcs (Standard)
Maximale Geschwindigkeit	1000mm/s	1000mm/s	1000mm/s
Reproduzierbarkeit Genauigkeit	±0.01mm	±0.01mm	±0.01mm
Paint Volume	30CC	30CC	30CC
Paint Detect	Automatische Erkennung	Automatische Erkennung	Automatische Erkennung
Schnittstelle	SMEMA	SMEMA	SMEMA
Richtung	left→right (Standard) □ right→left	left→right (Standard) □ right→left	left→right (Standard) □ right→left
Valve Cleaning Device	Staubsaugen	Staubsaugen	Staubsaugen
Alarm	Menü + Ton- und Lichtalarm	Menü + Ton- und Lichtalarm	Menü + Ton- und Lichtalarm
Förderer	Bandförderer	Bandförderer	Bandförderer
Geschwindigkeit	stepper motor 2–5m/min	stepper motor 2–5m/min	stepper motor 2–5m/min
Breite	50–400mm	50–400mm	50–400mm
Power Supply	220V 50/60HZ	220V 50/60HZ	220V 50/60HZ
Luftdruck	≥0,65Mpa	≥0,65Mpa	≥0,65Mpa
Safety Standard	CE	CE	CE
Gesamtleistung	2,5KW	2,5KW	2,5KW
