Three-Axial Coating Machine

High-precision coating system designed for complex PCB coating applications with flexible valve configurations.

Three Axial Control Revestimiento Servo Motion

Descripción del producto

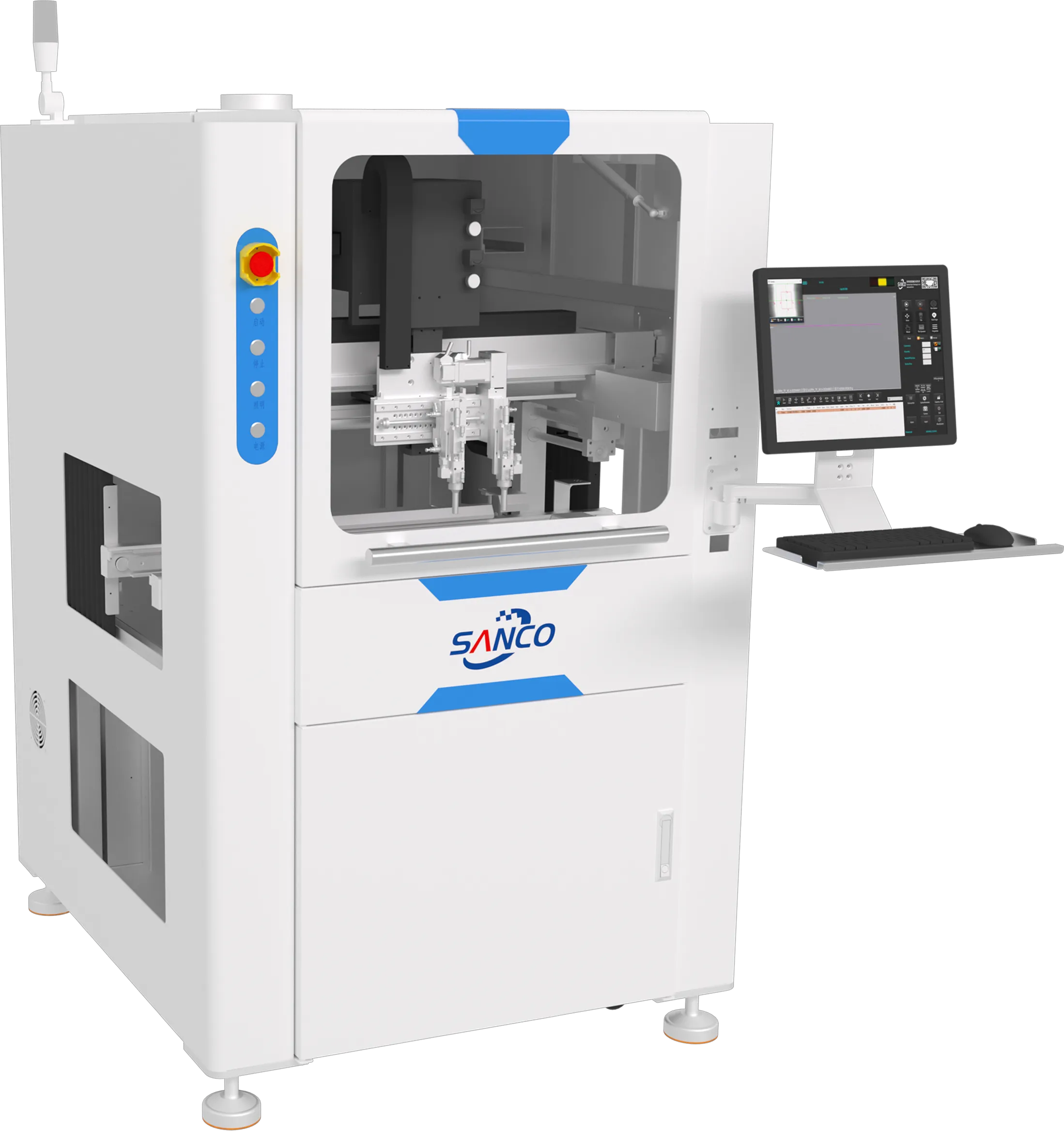

The Three-Axial Coating Machine is a high-performance coating system designed for precision surface coating across multiple industries. Equipped with a three-Axial motion platform, it ensures smooth operation, high repeatability, and accurate coating paths for complex PCB structures.

The system supports flexible valve configurations and can automatically match different coating valves according to process requirements. It is capable of handling multi-panel boards and complex coating paths, making it suitable for both high-mix and mass production environments.

With advanced motion control, stable structural design, and intelligent software integration, this machine delivers consistent coating quality, high efficiency, and excellent adaptability to different production needs.


Precisión de posicionamiento
0.02mm Precision


Servo Motion
X/Y/Z Axial Control


Flexible Valves
1-4 Valve Configuration


Interfaz SMEMA
Automated Line Ready

Aplicaciones

Aplicaciones industriales

Revestimiento conformado de precisión para diversos conjuntos de placas de circuito impreso

Panel de control de electrodomésticos

Tarjeta de control electrónico del automóvil

Placa de circuito impreso de instrumentación

Cuadro de control de equipos industriales

Cuadro de protección de la batería

Placa de control de electrónica de consumo

Panel solar / fotovoltaico

Tarjeta de control del motor

Rendimiento

Aspectos técnicos destacados

Especificaciones clave que definen la excelencia

0.02

Positioning accuracy

1-4

Valves

Flexible valve configuration

Servo

X/Y/Z Axial

High-precision motion control

Auto

Cleaning

Valve auto-cleaning function

SMEMA

Interfaz

Standard communication

MES

Compatible

System integration ready

Tecnología

Características principales

Advanced coating technology for complex PCB applications

Advanced Motion Control System

Computer + motion controller with Windows OS, featuring fault alarms and intuitive menu display.

Easy Programming & Operation

Manual teaching programming mode allows quick setup and easy operation.

High-Precision Motion Platform

Integral steel platform ensures smooth operation and long-term stability.

High Accuracy Three-Axial Drive

X, Y, Z axes driven by servo motors and ball screws, achieving 0.02mm positioning accuracy.

Ajuste automático de la anchura

Ball screw-driven mechanism ensures conveyor rails remain parallel and stable.

Sistema de transporte estable

Double stepper motor-driven chain with durable guard structure.

Durable Mechanical Structure

Special aluminum alloy track with stainless steel conveyor chain for long service life.

Flexible Valve Configuration

Supports 1-4 coating valves per machine, switchable according to production requirements.

Automatic Valve Cleaning

Built-in auto-cleaning function ensures long-term coating consistency.

Automatic Reset & Calibration

Automatic reset and calibration during operation to maintain coating accuracy.

Stable Coating Output

Paint container with constant current and pressure output ensures uniform flow.

Optional Metering Pump Feeding

Optional metering pump guarantees 100% accurate paint delivery.

Exhaust & Environmental Control

Equipped with exhaust vents to improve coating environment and safety.

Interfaz de comunicación SMEMA

Standard interface for easy integration into automated production lines.

Network Communication Capability

Supports communication with other devices through network ports.

MES System Compatibility (Optional)

MES system integration available based on customer requirements.

Specifications

Parámetros técnicos

Especificaciones técnicas y parámetros completos.

Artículo	Technical parameters and description	Artículo	Technical parameters and description
Modelo	CM 460	Velocidad de transferencia	0 -13m/min
Dimensiones	W1000mm × L1200mm × H1700mm	Transportador	Tipo de cadena
Peso	560kg	Width adjust mode	Electric AM + Ball Screw
Método de control	IPC + Motion Card	Width adjust speed	250mm/min
Software	Sanco Software + Windows System	PCB edge space	25mm
Programación	Teaching / Keyboard and Mouse	Communication port	SMEMA Connector
Número de husillos	X Y Z	Single coating width	2-30mm
Accionamiento del husillo	Servo Motor + Ball Screw	Equipment air pressure	0.5 MPa
Coating stroke	X: 460mm Y: 460mm	Exhaust air volume	15m³/min
Maximum movement speed	800 mm/seg	Device power	AC220V 50/60Hz
Component maximum height	Conveying surface 100mm, bottom 100mm	Total equipment power	2.2kW
Repetibilidad	0,02 mm	Standard features
Number of tracks	1		LED lighting
Working direction	Left → Right (standard) Right → Left (optional)		soak and purge station
Conveying height	900 ± 20mm		Interfaz electrostática
