Professional SMT conveyor designed for flexible PCB transfer between SMT line equipment. Equipped with touch screen control, SMEMA standard compatibility, anti-static flat belt transmission, and ball screw automatic adjustment for reliable and efficient material handling.
Product Description

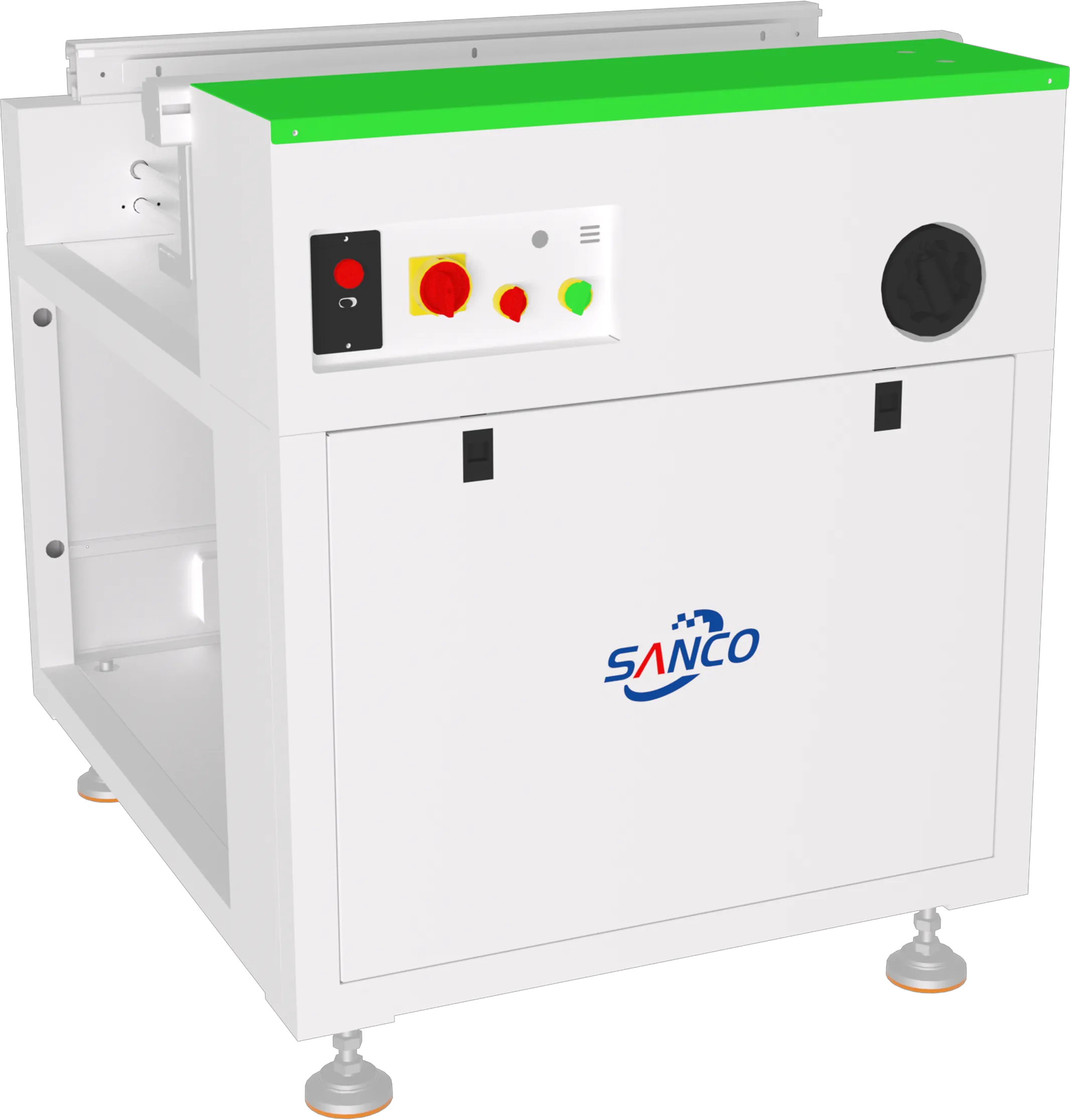

The JB-500C SMT Conveyor is a professional PCB transfer system engineered for flexible connection between SMT line equipment. It delivers reliable and consistent material handling with fully adjustable transfer direction, variable speed control, and precise rail width adjustment ranging from 50mm to 350mm — accommodating a wide variety of PCB formats used in modern electronics manufacturing.
Equipped with an intuitive touch screen control interface, the JB-500C supports the SMEMA communication standard, enabling seamless signal exchange and synchronization with upstream and downstream SMT production equipment. This ensures smooth board flow across the entire production line without manual intervention or complex integration work.
The conveyor utilizes an anti-static flat belt transmission system specifically designed to protect electrostatic-sensitive electronic components throughout the transfer process. This makes the JB-500C a safe and dependable choice for handling bare boards, populated PCBs, and other ESD-sensitive assemblies at any stage of the SMT process.
A key engineering feature of the JB-500C is its ball screw automatic width adjustment mechanism. This precision-driven system allows operators to change the rail width quickly and accurately via the touch screen, eliminating manual measurement and adjustment errors. The mechanism supports repeatable positioning, which is critical for high-throughput production environments running multiple PCB sizes.
The unit operates on AC 220V / 50Hz power and consumes only 0.2 kW, making it an energy-efficient addition to any SMT line. With a compact footprint of 500mm × 790mm × 810mm, a working height of 900 ± 20mm, and a total weight of approximately 50 kg, the JB-500C is easy to install, reposition, and integrate into both new and existing production line layouts. It supports PCB thicknesses from 0.6mm to 6mm and a maximum carrier weight of 1.5 kg, covering virtually all standard PCB assemblies encountered in contract manufacturing and in-house production environments.
Technical Highlights
Key specifications that define excellence
Rail width adjustment range
Standard working height
Rated power consumption
Maximum PCB weight capacity
PCB thickness range
Equipment weight
Key Features
Advanced material handling technology for SMT production
Touch Screen Control System
Intuitive touch screen interface enables easy operation and precise parameter adjustment for speed and direction control.
SMEMA Standard Compatible
Fully compatible with SMEMA standard for seamless integration with SMT production line equipment.
Anti-Static Flat Belt
Anti-static flat belt transmission protects sensitive electronic components from electrostatic discharge during transfer.
Ball Screw Automatic Adjustment
Precision ball screw mechanism enables accurate and repeatable rail width adjustment for various PCB sizes.
Adjustable Transfer Direction
Supports L-R and R-L transfer direction switching for flexible production line layout and equipment connection.
Adjustable Speed Control
Variable speed control synchronizes with upstream and downstream equipment for optimized material flow.
Precise Width Adjustment
Rail width adjustable from 50mm to 350mm accommodates various PCB sizes with accurate positioning.
Compact Design
Lightweight and compact structure (50kg) facilitates easy installation and line layout optimization.
Specification
Device connection transmission
| Item | Specification | Item | Specification |
|---|---|---|---|
| Model | JB-500C | Guide rail fixing method | 1 track fixed, 2 tracks mobile |
| Circuit board size (mm) | Width 50–350mm | Control method | Touch screen all-in-one |
| Machine dimensions (mm) | L500 × W790 × H810mm | Conveyor motor | 42 Stepper Motor |
| Working height (mm) | 900±20mm | Guide | 12×55 special aluminum profile |
| Power supply | AC220V, 50Hz | Width adjustment method | Ball screw automatic width adjustment |
| Power | 0.2 KW | Signal communication interface | Standard SMEMA interface |
| Equipment weight | About 50 KG | Circuit board thickness | 0.6–6mm |
| Transmission type | Anti-static flat belt transmission | Carrier weight | ≤1.5 kg |
| Transmission direction | Left to right / Right to left (optional) |
