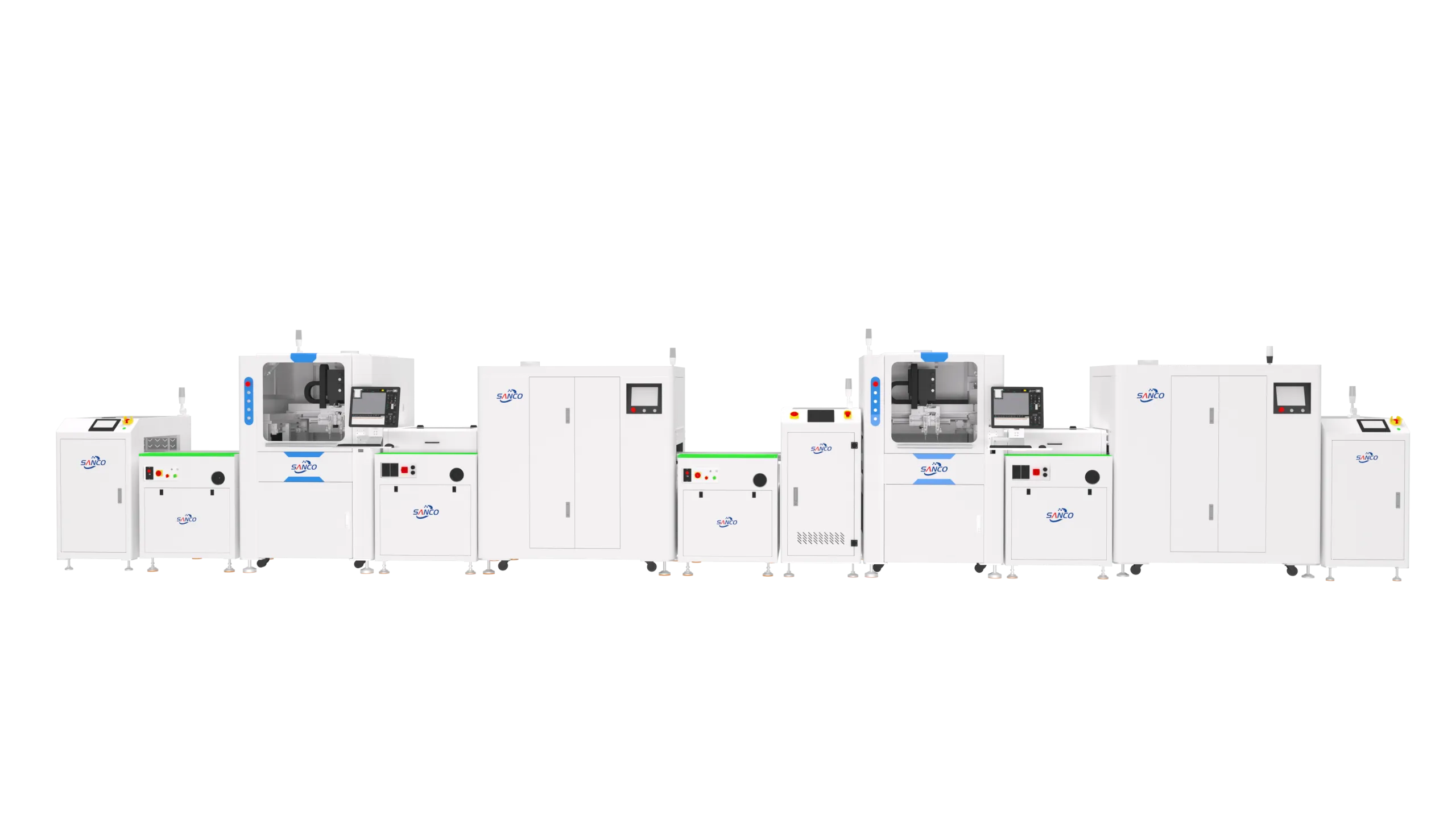

Double-side Online PCBA Conformal Coating Line Solution
Complete double-side coating system with UV curing for rapid processing of both PCB surfaces. This advanced solution provides comprehensive board protection with high-efficiency coating and curing processes, ensuring optimal coverage on both sides of your PCBAs.
Double-side Online PCBA Conformal Coating Line Solution with IR Curing Oven
Advanced double-side coating capability with PCB flipper for complete board protection using IR curing technology. Ideal for thermal curing applications and heat-activated coatings that require precise temperature control throughout the curing process.

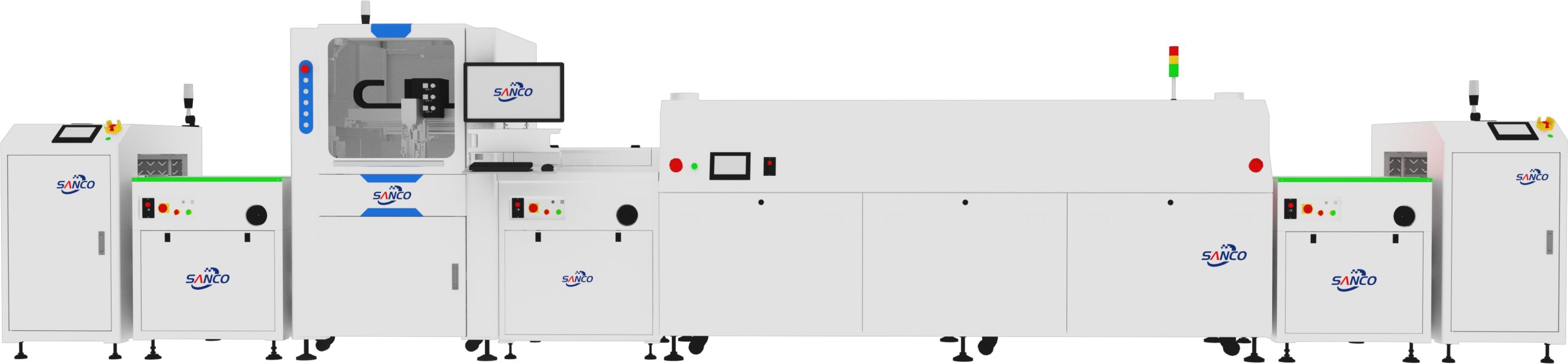

Online PCBA Conformal Coating Line with Return Plate
Single-side coating solution with efficient return conveyor system for streamlined production workflow. This cost-effective solution provides reliable conformal coating with automated board return, optimizing floor space and operator efficiency.
Online PCBA Conformal Coating Line with Return Plate and UV Curing Oven
Complete single-side coating solution with UV curing technology for fast, efficient conformal coating applications. The integrated UV curing oven ensures rapid and complete curing, significantly reducing cycle times while maintaining consistent quality.
Compact and Economic Double Sides Coating Line
Space-efficient double-side coating solution ideal for facilities with limited floor space and budget considerations. This compact design delivers full double-side coating capability without compromising on quality or production efficiency.
Various Line Combinations
Modular production lines engineered for precision dispensing, coating, curing, and PCB handling.
Comprehensive Production Solutions
End-to-end solutions for every stage of your production line.
Smart Solution
Digitalized workflows, connected equipment, real-time visibility.
Explore
Thermal Solution
Precise curing, reflow, and thermal management.
Explore
Cleaning Solution
Residue removal, surface preparation, cleaner boards.
Explore
Handling Solution
Smooth loading, unloading, and board transportation.
Explore
Fluiding Solution
Accurate fluid control for dispensing and coating.
Explore
Wave Soldering Solution
Stable soldering with consistent joint quality.
Explore
Depaneling Solution
Clean, precise board separation for mass production.
Explore
Dispensing Solution
Precise adhesive application for sealing, bonding, potting.
Explore

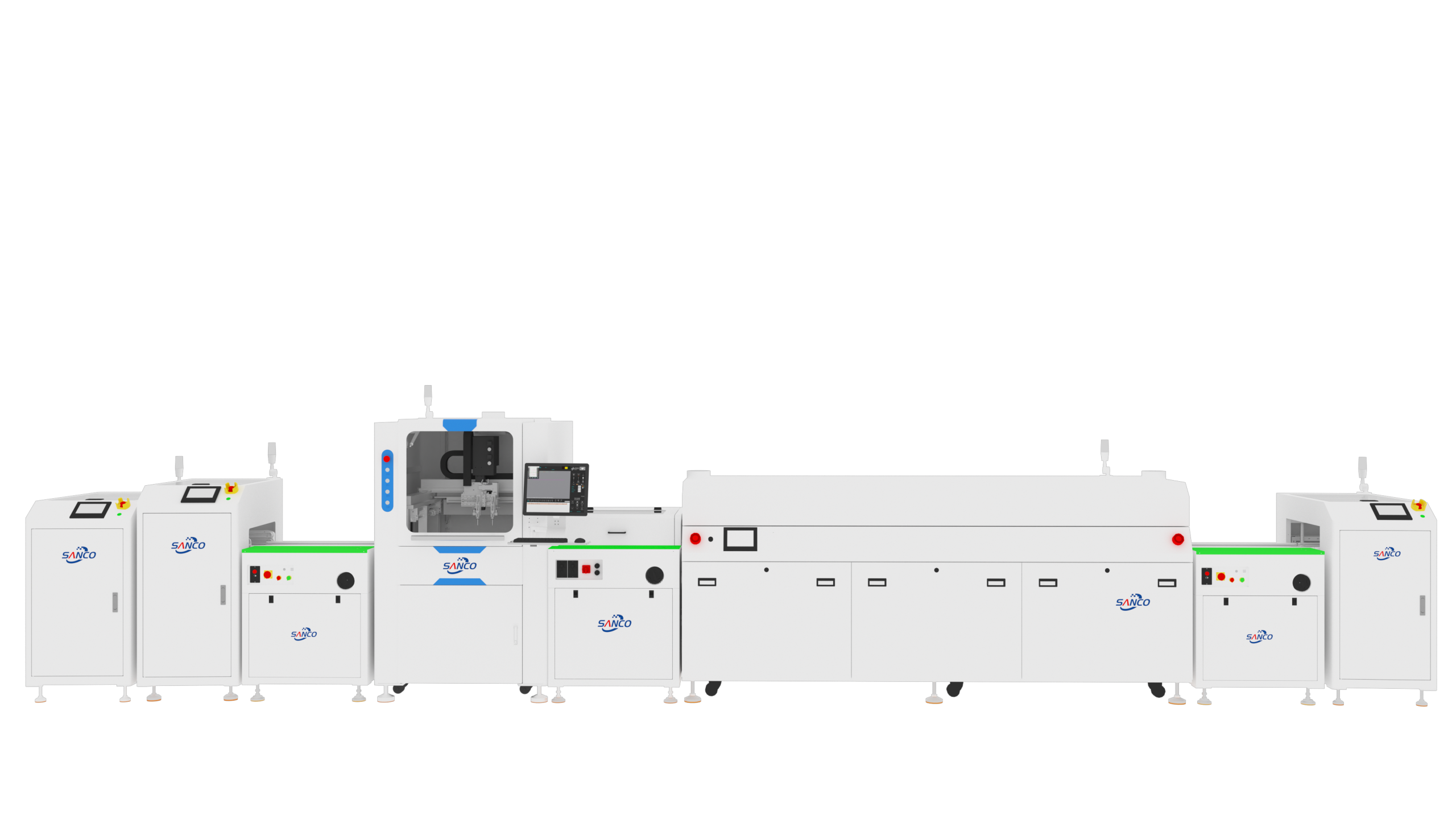

Compact and Economic Double Sides
Coating Line
Complete double-side conformal coating solution featuring IR curing technology for fast, efficient processing. This integrated production line combines precision coating, UV inspection, and rapid curing to deliver consistent high-quality results with maximum throughput efficiency.
Watch Our Production Line in Action
Experience the precision and efficiency of our integrated PCBA conformal coating solution
Line Equipment Components
Click on each equipment to view detailed specifications. Our integrated solution combines precision dispensing, IR curing, and intelligent material handling systems.
Production Process Flow
Click on each step to view detailed equipment specifications
Line Equipment Components

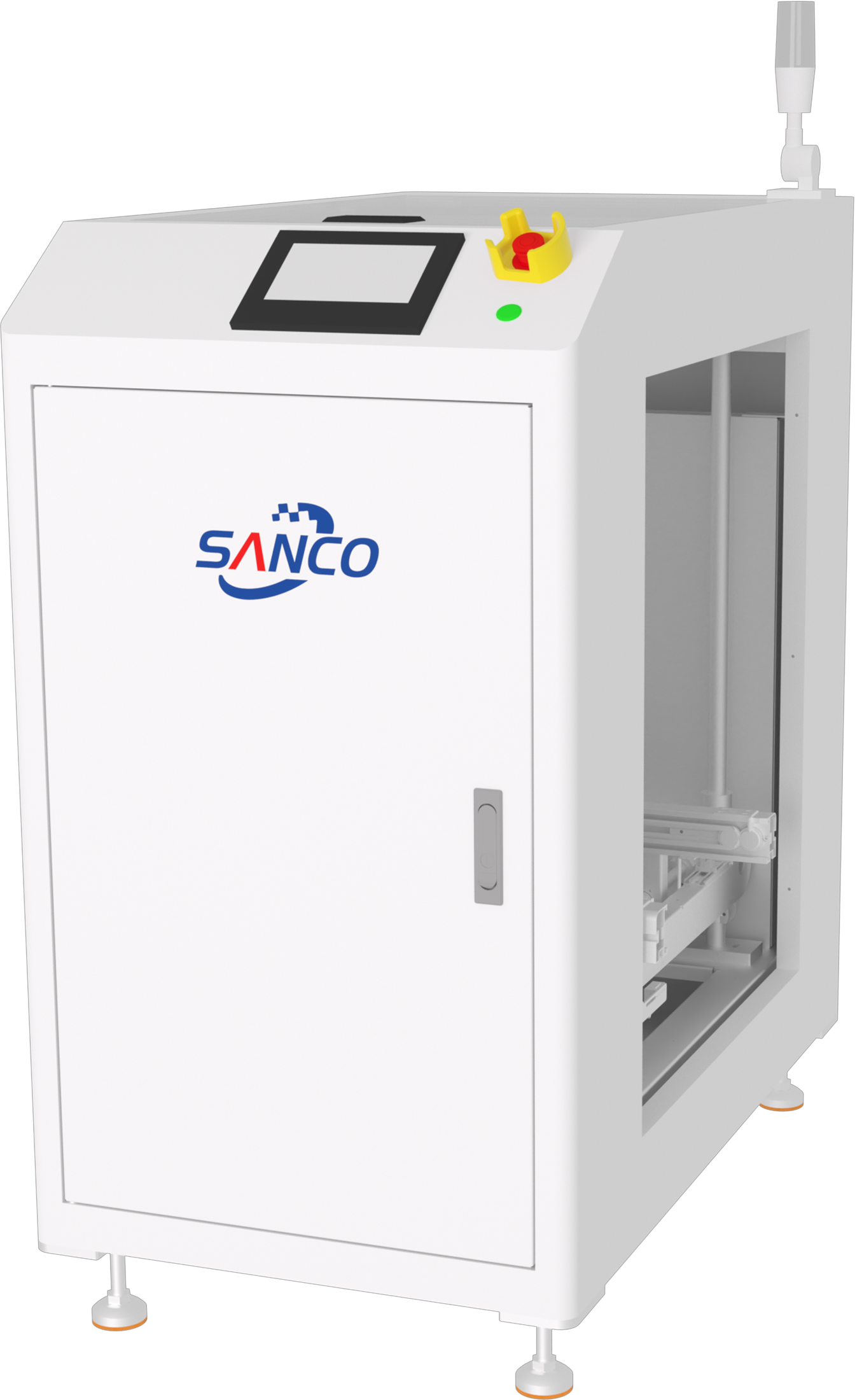

Elevator (Lift IN)
Automatic PCB elevator system for smooth board loading into the production line with precise height adjustment.

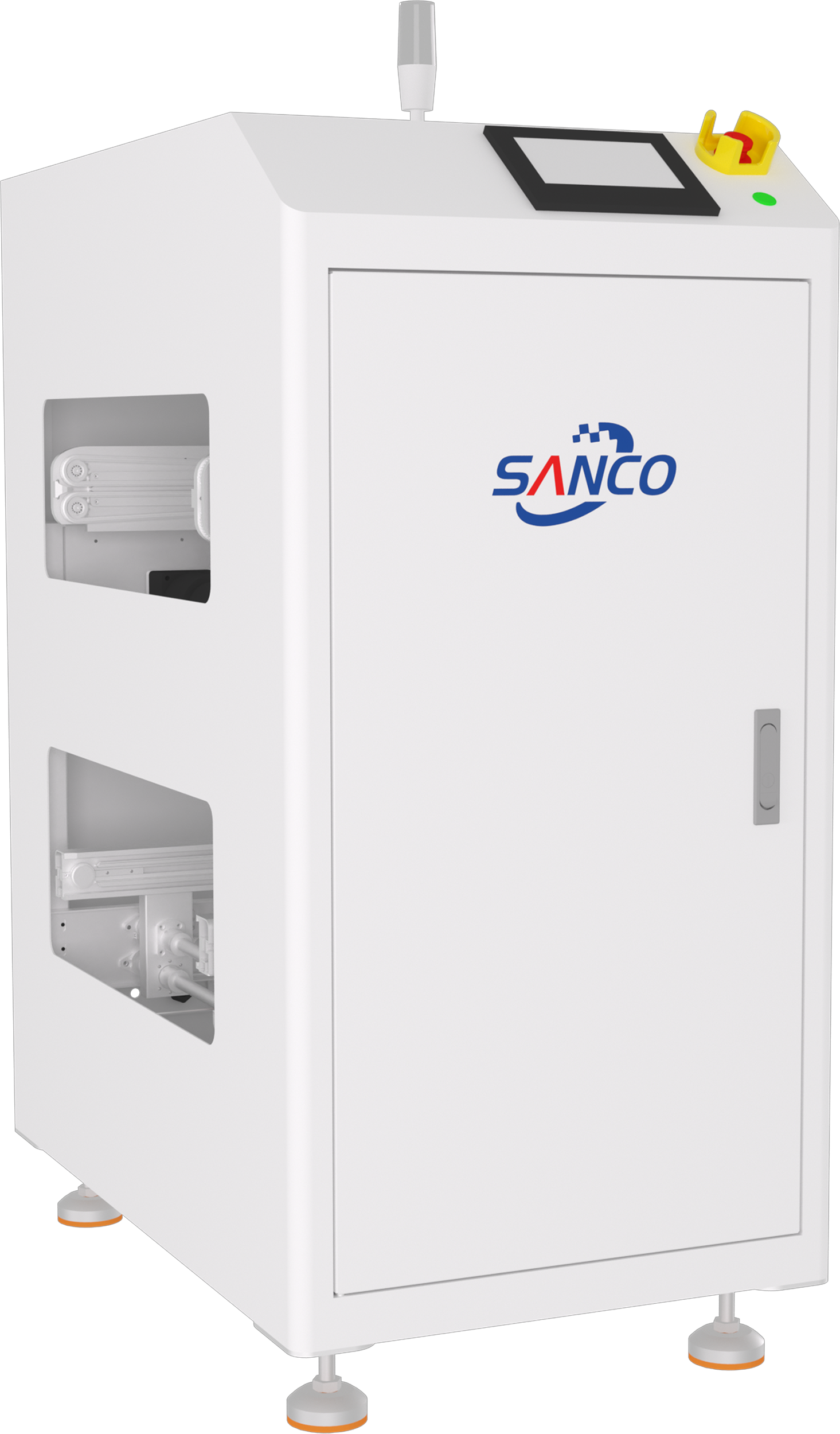

PCB Flipper
Automatic PCB board flipping system for double-sided processing with precise rotation control.
Conveyor
Device connection and transmission between SMT devices with touch screen all-in-one operation interface.

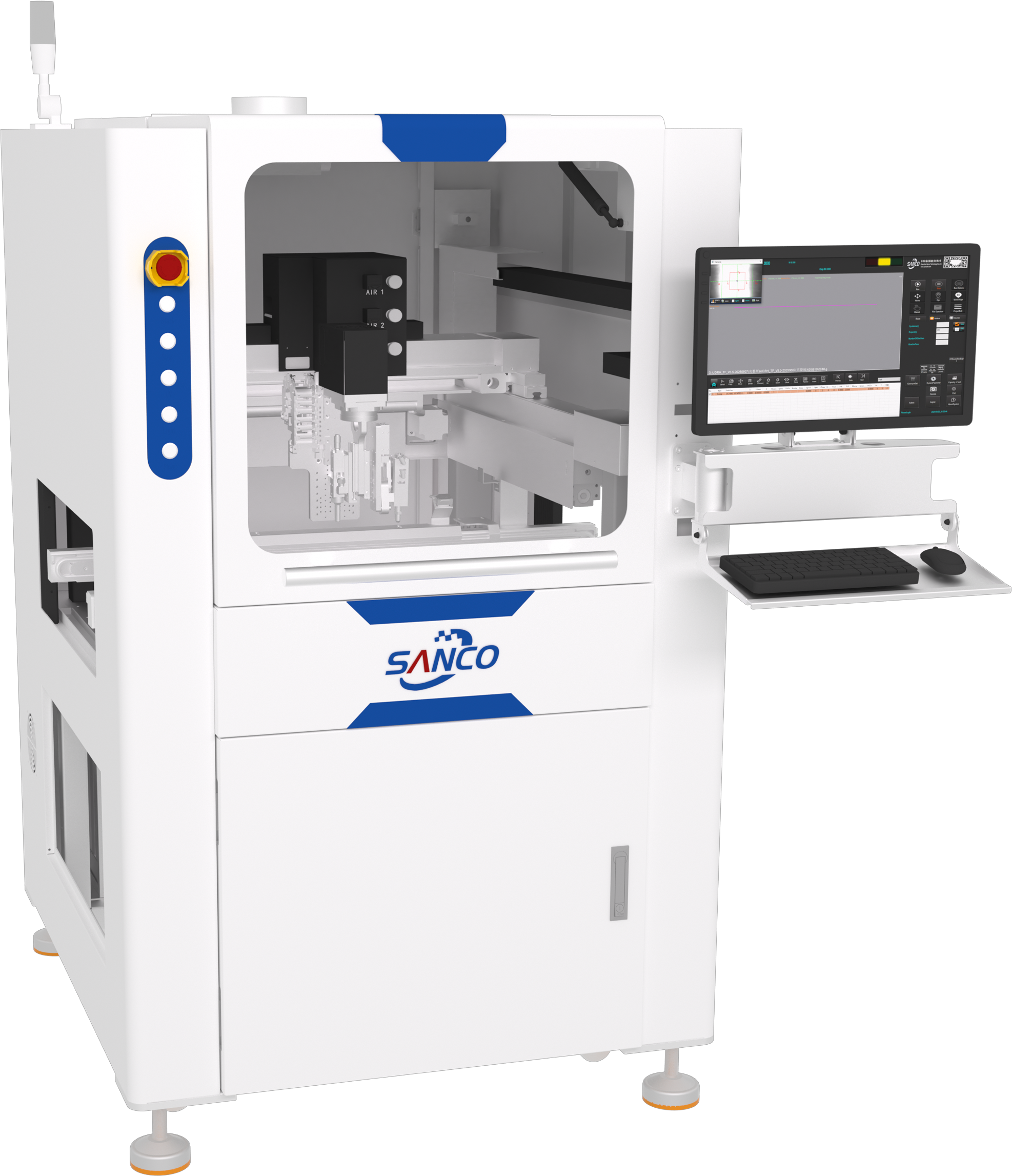

Four Axial Coating Machine
Advanced four-axis selective conformal coating system with enhanced precision movement for complex PCB geometries.

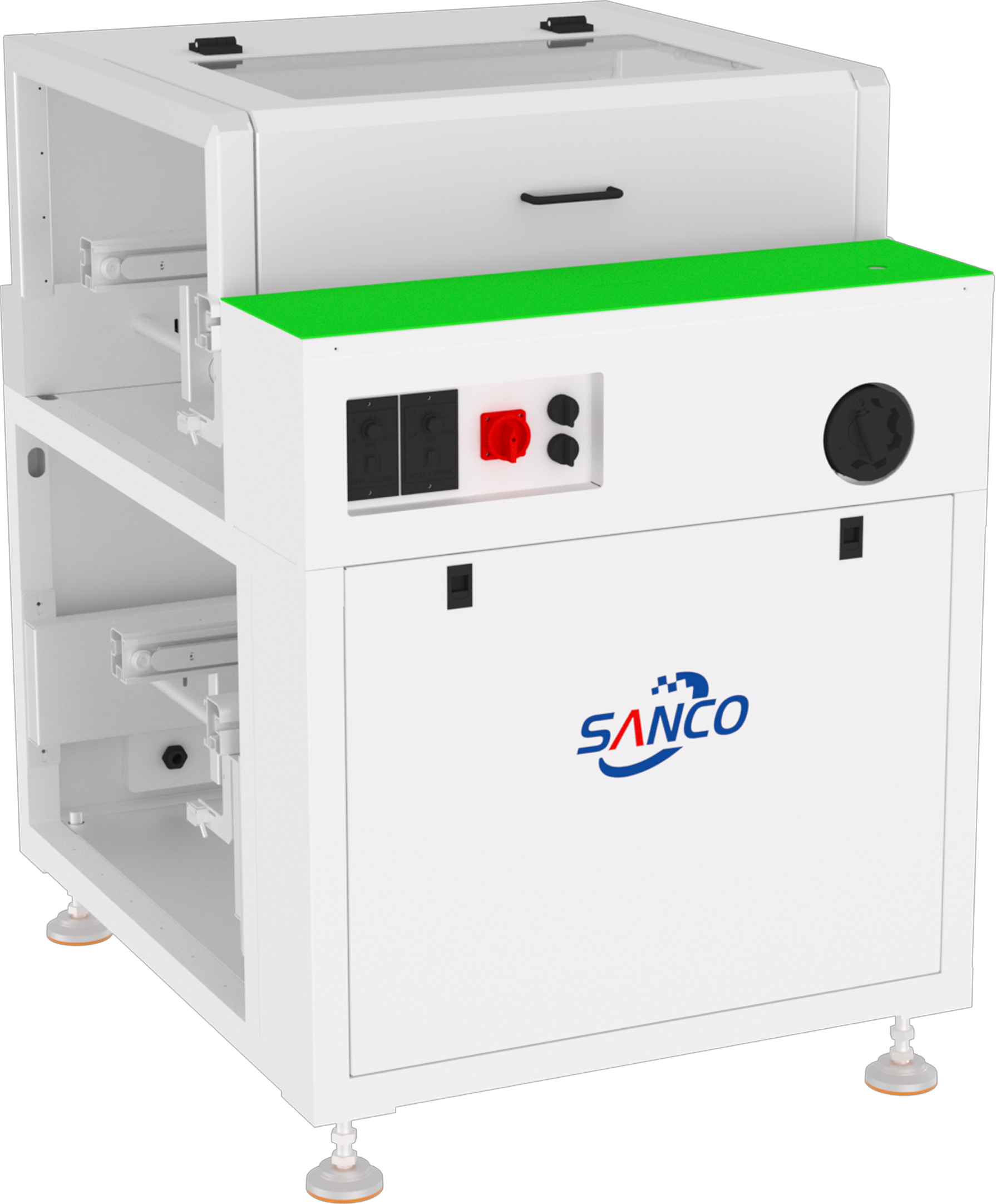

UV Inspection Conveyor
Integrated UV inspection system for real-time coating quality verification before curing process.
IR Curing Oven
High-efficiency infrared curing system with precise temperature control for optimal coating polymerization.
Elevator (Lift OUT)
Automatic PCB unloading elevator for smooth board exit with buffer storage capability.
