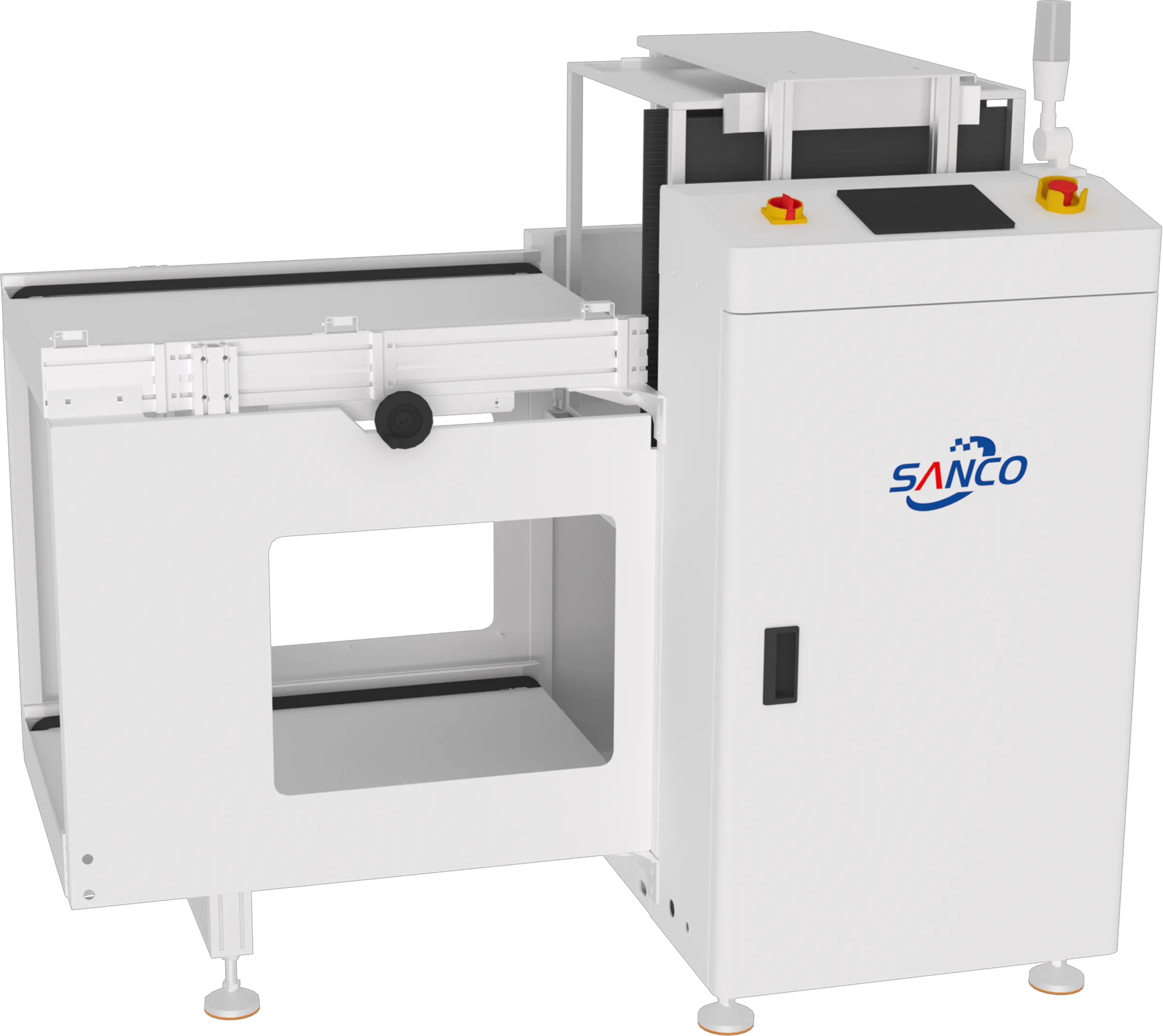

Automatic Magazine Loader
Automatic magazine loader designed for stable PCB loading and smooth production flow. Equipped with PLC control, servo lifting system, and SMEMA interface for seamless line integration.
Product Description
The Automatic Magazine Loader automates PCB transfer from magazine racks to downstream SMT equipment — eliminating manual handling, reducing errors, and keeping your production line running at full speed. Compliant with SMT best practices and IPC industry standards for automated board handling.
PLC Touch Control
Intuitive touch screen interface with real-time status monitoring. No specialized training required — operators configure and run in minutes.
Motorized Lifting
Selectable pitch of 10 / 20 / 30 / 40 mm. Compatible with a wide range of PCB sizes and magazine configurations used across the industry.
SMEMA Interface
Standard SMEMA communication for plug-and-play integration with any upstream or downstream SMT equipment — no custom wiring needed.
Robust Construction
Sheet-metal frame with aluminum components. Minimized vibration protects even the most delicate 0.4 mm thin boards during transfer.
Eliminate the #1 SMT Bottleneck
Manual PCB loading forces operators to repeatedly retrieve boards, align them, and feed equipment — all while racing against cycle times. One misalignment can cascade into downstream defects.
- Reduce labor cost & fatigue
- Consistent 5-second feed intervals
- Zero board misalignment on input
- Frees operators for higher-value tasks
Built for Any Production Scale
From high-volume consumer electronics to precision industrial PCB assembly. Handles boards 50 – 535 mm wide and as thin as 0.4 mm, fitting prototype runs and mass production alike.
Technical Highlights
Key specifications that define excellence
PCB loading time
PCB width range
Working height
Magazine size
Minimum PCB thickness
Air pressure requirement
Key Features
Advanced automatic loading technology for SMT production
Automatic PCB Loading
Automatically transfers PCBs from magazine racks to the next process one by one.
PLC Touch Screen Control
User-friendly PLC system with touch screen for intuitive operation.
Motorized Lifting Structure
Stable lifting system with selectable pitch options (10mm, 20mm, 30mm, 40mm).
PCB Protection Design
Cylinder/motor conveying method with buffering mechanism to protect PCBs from damage.
Bottom-In, Top-Out Magazine Handling
Efficient magazine rack exchange for improved production efficiency.
SMEMA Interface
Standard SMEMA cable for smooth communication with other equipment.
Specification
Complete technical specifications and features.
| Item | Specification and Description |
|---|---|
| Model | STJ-460 |
| Machine Dimensions (mm) | L1800 × W970 × H1250 |
| Circuit Board Size (mm) | 50×50 ~ 535×460 |
| Bin Size (mm) | 535 × 530 × 569 |
| Specification Items | Specification |
|---|---|
| Circuit Board Loading Time | 5.0 sec |
| Working Height (mm) | 920 ± 30 (std) |
| Power Supply | AC 220V ± 10V, 50/60 Hz |
| Compressed Air Pressure | 4 – 6 bar |
| Circuit Board Thickness | Minimum 0.4 mm |
