UV Inspection Conveyor
Ergonomic manual inspection conveyor designed for visual PCB quality control with optimized working height, intuitive touch screen interface, and seamless production line integration.
Product Description

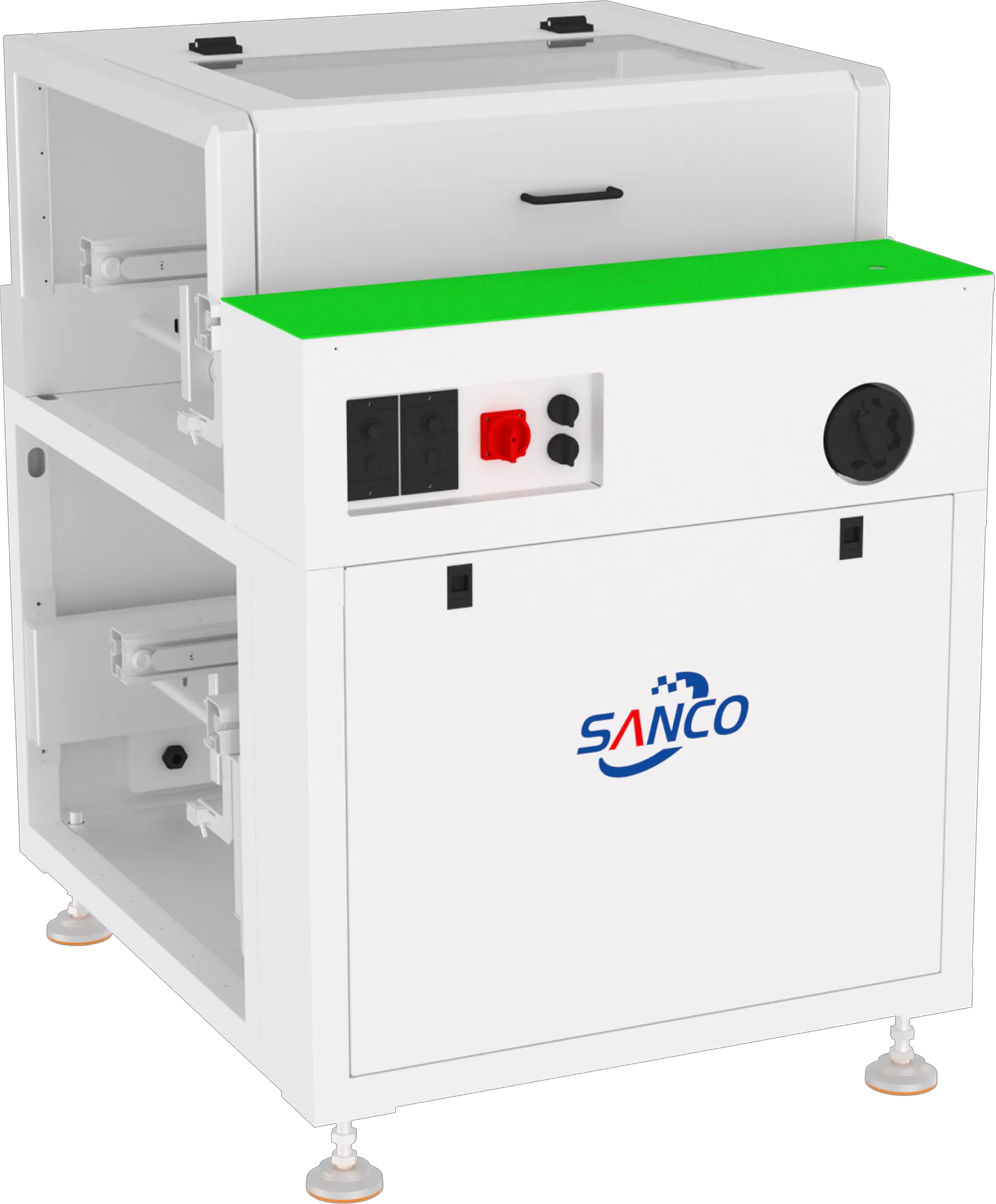

The UV Inspection Conveyor (Model JB-1000C) is a specialized manual inspection station engineered to provide operators with an ergonomic workspace for thorough visual inspection of PCBs during production.
Featuring an integrated touch screen control system, the conveyor offers intuitive operation with minimal training requirements. The standardized working height of 900±20mm ensures operator comfort during extended inspection sessions, while the anti-static flat belt transmission protects sensitive components from ESD damage.
Technical Highlights
Key specifications that define excellence
PCB width range
PCB thickness range
Working height
Equipment weight
Power consumption
Power supply
Key Features
Ergonomic manual inspection solution for SMT production
Ergonomic Manual Inspection Design
Optimized workspace with standardized working height ensures operator comfort during extended visual inspection sessions.
Integrated Touch Screen Control
All-in-one touch screen interface provides intuitive operation with minimal training requirements.
Flexible Transmission Direction
Configurable conveyor direction adapts to various production line layouts and workflow requirements.
Simple & Efficient Operation
User-friendly design ensures quick setup and straightforward day-to-day operation for all skill levels.
Anti-Static Belt Transmission
ESD-safe flat belt system protects sensitive electronic components from static discharge during handling and inspection.
SMEMA Interface Standard
Standard SMEMA communication interface enables seamless integration with upstream and downstream production equipment.
Technical Specifications
Complete technical specifications for JB-1000C Conveyor System
| Describe | Device connection transmission | ||
|---|---|---|---|
| Model | JB-1000C | Guide rail fixing method | 1 track fixed, 2 tracks mobile |
| Circuit board size (mm) | Width 50~350mm | Control method | Touch screen all-in-one |
| Machine dimensions (mm) | L1000*W830*H1900mm | Conveyor motor | 42 Stepper Motor |
| Working height (mm) | 900±20 mm | Guide | 12*55 special aluminum profile |
| Power supply | AC220V, 50HZ | Width adjustment method | Ball screw automatic width adjustment |
| Power | 0.2KW | Signal communication interface | Standard SMEMA interface |
| Equipment weight | About 50KG | Circuit board thickness | 0.6 ~ 6mm |
| Transmission Type | Anti-static flat belt transmission | Carrier weight | ≤1.5kg |
| Transmission direction | Left to right/right to left (optional) | ||
